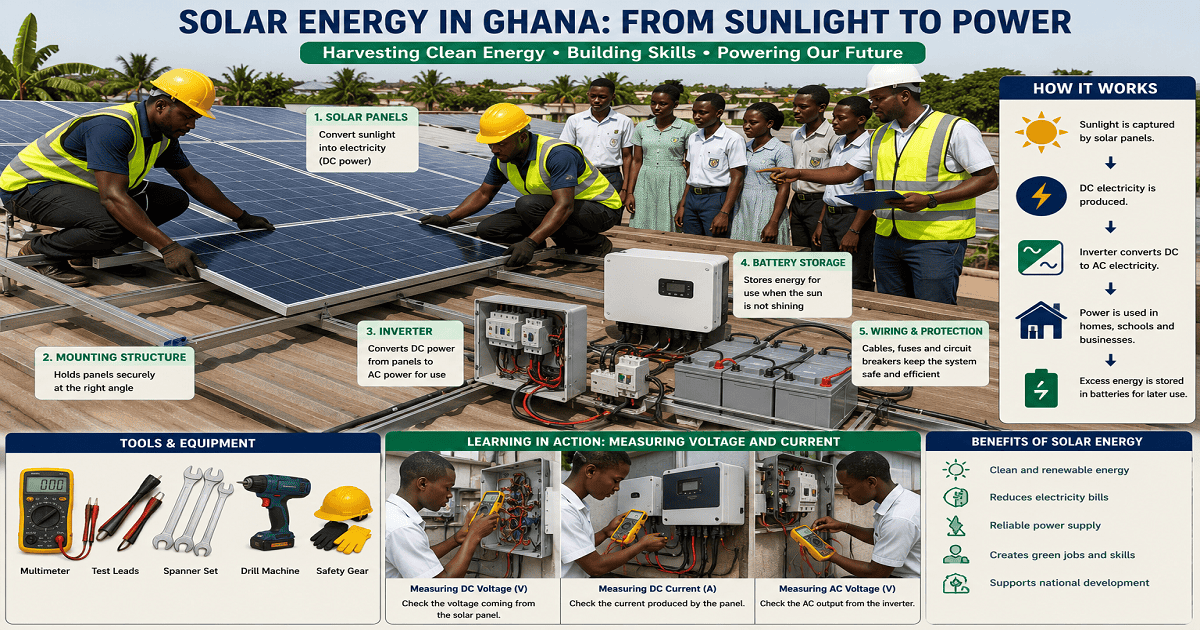

How Solar Panels Are Set Up In Ghana Explained for SHS 1 General Science (Semester 2, Week 2)
Solar energy provides a clean and renewable source of electricity that supports sustainable development in Ghana.
What You Will Learn
- The meaning and importance of solar energy
- How solar panels are installed in Ghana
- The functions of inverters and battery systems
- How environmental conditions affect solar panels
- Ways to maintain and care for solar panels
Main Explanation
Solar energy is produced from sunlight and converted into electricity using solar panels. Unlike fossil fuels, solar energy is renewable, environmentally friendly, and abundant.
Installing solar panels in Ghana starts with a detailed site assessment. Engineers examine factors such as sunlight intensity, shading, roof orientation, available space, and electrical systems.
After the assessment, engineers design a solar panel system that matches the energy needs of the building or facility. The design process includes selecting:
- The number of solar panels
- The inverter capacity
- Battery storage systems
- Mounting structures
- Electrical wiring arrangements
Permits and approvals are necessary to ensure compliance with building regulations and electrical safety standards.
Roof preparation is important because the roof must support the weight of the solar panels. A mounting structure is then installed to secure the panels and position them at the correct angle for maximum sunlight exposure.
The solar panels generate direct current (DC) electricity, which is converted into alternating current (AC) electricity by an inverter. AC electricity is suitable for homes and businesses.
In off-grid systems, battery storage and charge controllers are used to store energy for later use.
Testing and commissioning are carried out after installation. Engineers inspect wiring connections, measure voltage outputs, and ensure the system works safely and efficiently.
Regular maintenance is important for efficient solar panel operation. Cleaning removes dust and bird droppings that reduce sunlight absorption. Monitoring shading and checking electrical components also improve performance.
Solar panel systems in Ghana should also be protected from lightning using grounding systems and surge protectors.
Stages Of Solar Panel Installation
| Stage | Description | Importance |
|---|---|---|
| Site Assessment | Evaluation of sunlight and roof conditions | Determines suitable installation area |
| Design | Selection of system components | Ensures energy efficiency |
| Installation | Mounting and wiring panels | Generates electricity safely |
| Testing | Checking voltage and operation | Ensures proper performance |
| Maintenance | Cleaning and inspections | Improves system lifespan |
Lighting Conditions And Solar Output
| Lighting Condition | Voltage (V) | Current (A) | Power (W) |
|---|---|---|---|
| Direct Sunlight | 18.5 | 0.5 | 9.25 |
| Partial Shade | 10.2 | 0.3 | 3.06 |
| Artificial Light | 3.5 | 0.1 | 0.35 |
Worked Examples
Example 1
Problem: Calculate the power produced by a solar panel with a voltage of 10.2 V and a current of 0.3 A.
- Use the formula Power = Voltage × Current.
- Substitute the values.
- Multiply 10.2 × 0.3.
Answer: Power = 3.06 W.
Example 2
Scenario: A solar panel system produces less electricity because nearby trees cast shadows on the panels.
Explanation: Shading reduces sunlight exposure, which lowers voltage, current, and overall energy production.
Why This Topic Matters
Solar energy reduces dependence on fossil fuels and supports environmental sustainability. Understanding solar panel installation and maintenance helps learners appreciate renewable energy technologies and their importance in national development.
Quick Practice
- Define solar energy.
- State two factors considered during site assessment.
- Explain why solar panels require regular cleaning.
Summary
Solar panels convert sunlight into electricity and provide a renewable source of energy. In Ghana, solar panel systems are installed through site assessment, design, mounting, inverter connection, testing, and maintenance. Proper care and monitoring improve efficiency, safety, and durability of solar energy systems.
